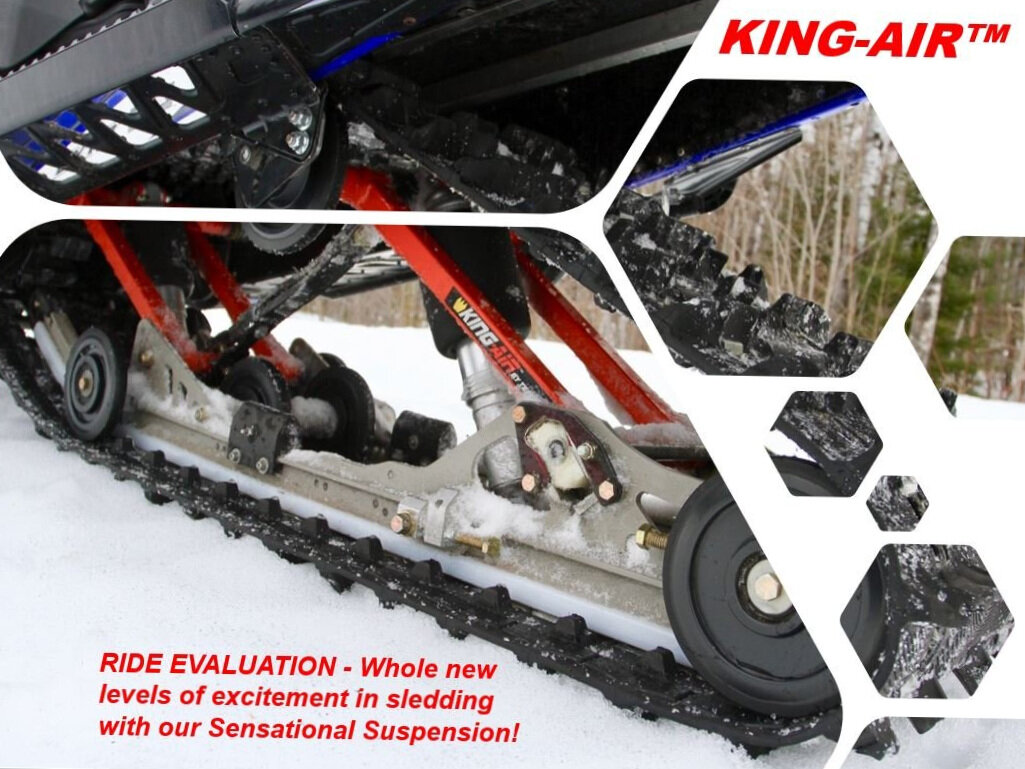

the new king-air



‘‘This will turn your sled around’’

to better understand the design advantages let’s look at the key areas differentiating this suspension

More Travel - The KING-AIR’s front arm cross-shaft is positioned in front of the rails providing up to 2 + inches more critical bump absorbing travel than your current suspension. This added stroke better isolates riders from the major jolts and jarring of frontal impacts.

Coupling is KING - Stock suspensions with their long-front/short-rear-arm geometry deliver only a limited amount of coupled travel. The KING-AIR employs full-parallelogram geometry generating lots of coupling that dramatically reduces rail to bump contact angles. This “angle flattening” generates the bump bridging you need to top the dreaded stutters...no need to slow down here!

New Bypass Shocks - We’ve rethought and improved our bypass technology two fold. They now allow free-er travel at mid-stroke while providing greatly increased control at the upper and lower ends of travel. And they are now employed in both rear shocks doubling their effect.

009A3459 copy.jpg

Going Remote - Front-arm shocks on rider-forward sleds are critical in delivering the smooth finesse we all seek. We found that by employing a remote reservoir on our front arm shock we could achieve large gains in small and medium bump control…..the KING-AIR features it.

Unfair Advantage - Our rolling-lobe airsprings on the KING-AIR’S shocks provide an optimally-progressive spring rate and a major weight reduction. Comparatively speaking the best coiled-steel springs can offer is preload adjustment, you’re stuck with the factory-spec’d spring rates. While air-cylinder shocks offered by other manufactures claim you’ll “float,”they actually create overly-progressive spring rates that are difficult to set for wide ranging snow conditions. By setting the air pressure in our large volume airshocks, you can adjust the preload and spring rate in tandem to tailor the ride to your weight and riding style, providing the enjoyment of the widest sweet-spot for all conditions.

CLICK IMAGE to read recent Snow-Tech story

CLICK IMAGE to read recent Snow-Tech story

Available for 129” and 137” track

Yamaha SRV Viper/ Sidewinder chassis sleds

Artic Cat-ProCross chassis sleds

 Arm Colors: Orange or Black / Rail Colors: Titanium or Aluminum

MSRP: Starting at $1,958.00





YOU'll BE ABLE TO CONTROL YOUR SNOWMOBILE IN COMFORT AT HIGHER SPEEDS.
GET AWAY FROM THE PACK WHEN TRAILS GET ROUGH!
