STANDARD M-10, 2001 and newer PARTS


M-10 STANDARD SLIDE RAIL & ASSEMBLY

                Rail RH:121-8618-XX
                Rail LH: 121-8619-XX
1.             Nut, Nylok:  675-4192-50
2.             Washer, Flat: 675-5578-30
3.             Cap, Rail Tip: 654-3437-40
4.             Nut, Nylok : 675-4232-40
5              Washer, Flat: 675-5840-20
6.             Block Rail Support: 651-3257-70
7.             Plate, Rail Support: 652-4465-10
8.             Ring, Retaining : not available
9.             Bearing (1/wheel): not available
10.           Front Wheel : 615-4301-80
11.           Bumper, Rail Jounce : 654-1194-70
12.          Screw: 675-1239-20
13.          Screw : 675-1777-30
14.          Nut, Tension Adjust : 651-3271-20
15.          Not available
16.          Block, Idler Bolt Adjust: 651-3261-10
17.          Guide, Slider, LH: 656-3118-xx
              Guide, Slider, RH: 656-3118-xx
18.          Plate, Coupler Block :652-4504-50
19.          Bolt : 675-1231-00
20.          Block, Slider, 121 LH : 654-3423-90
              Block, Slider, 121 RH : 654-3424-00
              Block, Long Track LH : 121-8221-00
              Block, Long Track RH: 121-8220-00
21.          Block, Shock Pivot: 651-3258-40
22.          Bolt : 675-1551-10
23.          Nut, Hex, Thin: 121-8932-00
24.          Bolt: 675-1196-70
25.          Clamp, Reservoir: 651-3283-20
26.          Bolt : 675-1531-90
27.          Bolt: 675-1538-20
28.          Washer, Spring : 675-7161-80
29.          Rivet: 676-6184-50
30.          Mount, Wheel : 656-3106-50
31.          Bolt : 675-1232-90
32.          Hi Fax set: 655-2152-80
33.          Bolt : 675-1193-00
34.          Screw :675-1519-90

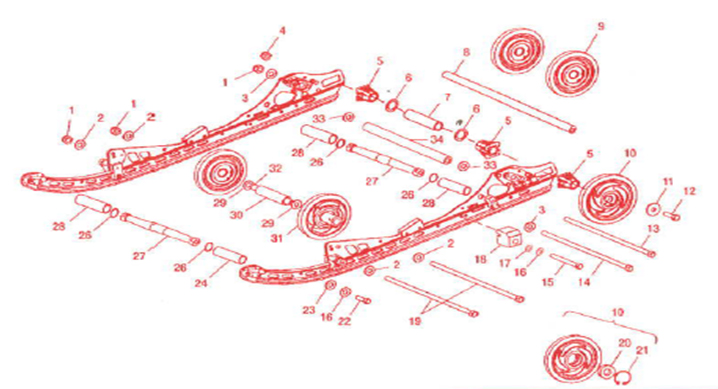

M-10 STANDARD SUSPENSION ASSEMBLY

1.             Nut, Nylok: 675-4243-90
2.             Washer, Flat : 675-5579-70
3.             Washer, Flat: 675-5580-60
4.             Nut, Nylok: 675-4706-40
5.             Spacer, Inner /Outer Idler: 654-3253-50
6.             Bushing: 675-5591-80
7.             Spacer Idler Center 3 wheels: 653-3328-30
                Spacer Idler Center 4 wheels: 653-3328-30
8.             Shaft, Idler : 650-2074-40
9.             Rear Idler Wheel 6”: 615-9030-70
10.           Rear Idler Wheel 6”: 615-9030-70
11.           Washer, Belle: 675-5613-00
12.           Bolt: 675-1773-10
13.           Screw : 675-1789-60
14.           Screw: 675-1782-10
15.           Screw : 675-1785-60
16.           Washer, Spring Lock : 675-5260-30
17.           Washer: 675-5580-60
18.           Block, Shock Adjust: 651-3258-30
19.           Screw : 675-1735-30
20.           Bearing: not available
21.           Ring, Retaining: not available
22.           Screw : 675-1785-70
23.           Washer : 675-5580-60
24.           Limiter tie down: 651-3258-60
25.           Spacer: 651-3207-10
26.           O Ring : 654-1196-50
27.           Shaft, shock : 120-0025-00
28.           Spacer, Shock Centering: 653-3390-20
29.           Bushing : 675-5630-10
30.           Spacer, Bogie, Inner: 653-3039-40
31.           Front Wheel 5.35”: 615-4301-80
32.           Shaft : 651-3249-00
33.           Washer, Flat: 675-5840-20
34.           Tube : 653-3347-70

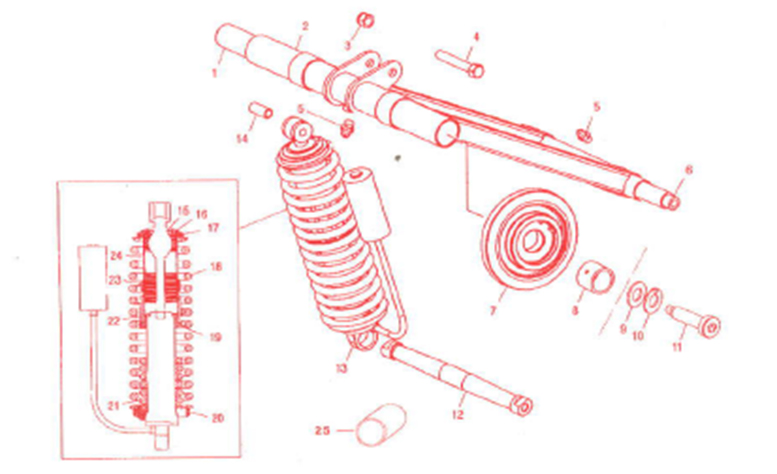

M-10 STANDARD REAR TORQUE ARM AND SHOCK ASSEMBLY

1.   Cross Shaft Rear Upper: 121-85XX-RR
2.   Torque Arm: 121-4074-50

3.   Nut Nylok: 675-4243-90
4.   Screw: 675-1551-50
5.   Fitting Lubrication: 670-8042-40

6.   Shaft: 651-3309-30
7.   Upper Carrier Wheel : 615-9030-80
8.   Spacer Rear Arm: 121-85XX-RR (sold with shaft)
9.   Washer Flat: 787-0140-29
10. Washer Lock : 787-1140-27
11. Screw Socket Head: 675-1781-50
12. Lower Shock Shaft: 120-0025-00
13. Rear Shock with remote: Obsolete
     Rear Replacement Shock: 157-1021-00

14. Sleeve: Obsolete
15. Cap : 652-4474-70
16. Retainer, Spring Slotted : 650-2061-80
17. Nut, Preload : 651-3264-50
18. Spring, Shock Rear: 670-4193-5067
18. Spring, Heavy Rear: 670-4201-1067
19. Bushing : 654-3388-20

20. Retainer, Spring : 651-3303-20
21. Spring, Overload : 670-4193-6067
22. Ring, Adjuster: 651-3262-50
23. Nut, Ring Adjuster: 651-3264-30
24. Sleeve: 651-3279-40
25. Fiber Bushing: 126-4011-00



M-10 STANDARD FRONT TORQUE ARM

1.   Cross Shaft Front Upper: 121-85XX-FRT
2.   Arm, Torque: 121-4074-50
3.   Sleeve: Obsolete
4.   Nut, Nylok: 675-4243-90
5.   Screw: 675-1551-50
6.   Retainer, Spring: 650-2061-80
7.   Spring D/R 100/300: 125-4001-00
8.   Fitting, Lubrication: 670-8042-40
9.   Shaft : 651-3257-90
10. Spacer: 651-3278-30
11. Screw: 675-1781-50
12. Washer, Lock: 787-1140-27
13. Washer, Flat: 787-0140-29
14. Spacer Front Arm: 121-85XX-FRT (sold with shaft)
15. Shaft, shock: 120-0025-00
16. Shock, Front: 157-1011-00
17. Nut, Nylok: 675-4232-40
18. Washer, Flat: 675-5617-50
19. Nut, Nylok,Thin: 675-4234-40
20. Bolt, Carriage: 675-1531-60
21. Strap, Limiter: 654-1194-00
22. Screw: 675-1239-20
23. Fiber Bushing: 126-4011-00

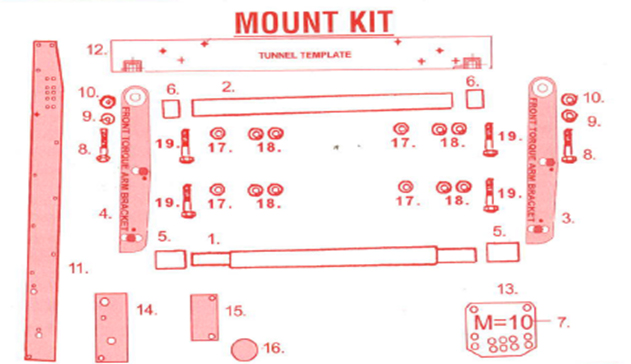

M-10 STANDARD 2000 TO 2014UNIVERSAL MOUNT KIT

1.   Cross Shaft Rear Upper: 121-85XX-RR
2.   Cross Shaft Front Upper: 121-85XX-FRT (sold with shaft)
3.   Bracket Front Torque, LH: 121-8413-00
4.   Bracket Front Torque, RH: 121-8412-00
5.   Spacer Rear Arm:  121-85XX-RR
6.   Spacer Front Arm: 121-85XX-FRT
7.   M-10 Decal: Obsolete
8.   Bolt, 7/16 x 1.25: 675-1781-50
9.   Lock Washer, 7/16: 787-1140-27
10. Flat Washer, 7/16: 787-0140-29
11. Tunnel Support: 121-8414-00
12. Tunnel Template: 121-8400-00
13. Outside Support Plate: 121-8407-00
14. Shim Plate, Front: 121-8409-00
15. Shim Plate, Rear: 121-8410-00
16. Obsolete
17.18 Replace with Flanged
         Nylock: 783-2060-00
19. Screw GR 5: 782-0062-00
